Product Detail

G30 Trailer Safety Chain Assemblies

Specifications With S-Hook with Latch
G30 CHAIN SIZE GROSS TRAILER WEIGHT (LBS.) S HOOK SIZE
3/16" 2,000 3/8"
5/0 3,500 13/32"
1/4" 5,000 7/16"
8/0 7,600 17/32"

Note: Assemblies are equipped with 1 or 2 S-Hooks and any chain length requested. CSA tags available.

High Test Grade 43 Trailer Safety Chain Assemblies

Specifications With Clevis Slip Hook with Latch
G43 CHAIN SIZE GROSS TRAILER WEIGHT (LBS.) S HOOK SIZE
1/4" 7,800 G-43 High Test
5/16" 11,700 G-43 High Test
3/8" 16,200 G-43 High Test

Note: Assemblies are equipped with any chain length requested. CSA tags available.

G70 Trailer Safety Chain Assemblies

Specifications With Clevis Slip Hook with Latch
G70 CHAIN SIZE GROSS TRAILER WEIGHT (LBS.) S HOOK SIZE
1/4" 12,600 G-70 Transport Chain
5/16" 18,800 G-70 Transport Chai
3/8" 26,400 G-70 Transport Chain
1/2" 45,200 G-70 Transport Chain

Note: Assemblies are equipped with any chain length requested. CSA tags available.

Cable Assemblies

Specifications Vinyl Coated Cable with S-Hooks or Clevis Slip Hooks with Latch
CABLE SIZE GROSS VEHICLE WEIGHT CABLE DESCRIPTION HOOK SIZE
1/8″ – 3/16″ 2,000 lbs. 7X19 Vinyl Coated GAC 3/8″ S-Hook
3/16″ – 1/4″ 3,500 lbs. 7X19 Vinyl Coated GAC 13/32″ S-Hook
1/4″ – 5/16″ 5,000 lbs. 7X19 Vinyl Coated GAC 7/16″ S-Hook
5/16″ – 3/8″ 7,600 lbs. 7X19 Vinyl Coated GAC 17/32″ S-Hook
1/4″ – 5/16″ 7,000 lbs. 7X19 Vinyl Coated GAC with Latch 1/4″ Clevis Slip Hook
5/16″ – 3/8″ 9,800 lbs. 7X19 Vinyl Coated GAC with Latch 5/16″ Clevis Slip Hook
3/8″ – 7/16″ 14,400 lbs. 7X19 Vinyl Coated GAC with Latch 3/8″ Clevis Slip Hook

Note: Assemblies are equipped with any cable length or color requested. CSA tags available.

NACM96(G70)

Specifications

Size Material Diameter Inside Length(max) Inside Width(min) Working Load Limit Proof test(min) Min Breaking(force) Unit Weight Per100'
IN MM IN MM IN MM IN KG LB KN LB KN LB KG LB
1/4 7.0 0.276 31.5 1.24 9.8 0.38 1430 3150 28.0 6300 56.0 12600 29.4 64.8
5/16 8.7 0.343 32.8 1.29 11.2 0.44 2130 4700 41.8 9400 83.6 18800 46.7 103
3/8 10.0 0.394 35.0 1.38 14.0 0.55 2990 6600 58.7 13200 117.4 26400 63.7 140
1/2 13.5 0.531 45.5 1.79 18.2 0.72 5130 11300 100.5 22600 201.0 45200 116.4 257
5/8 16.0 0.630 56.0 2.20 20.0 0.79 7170 15800 140.5 31600 280.9 63200 155 342

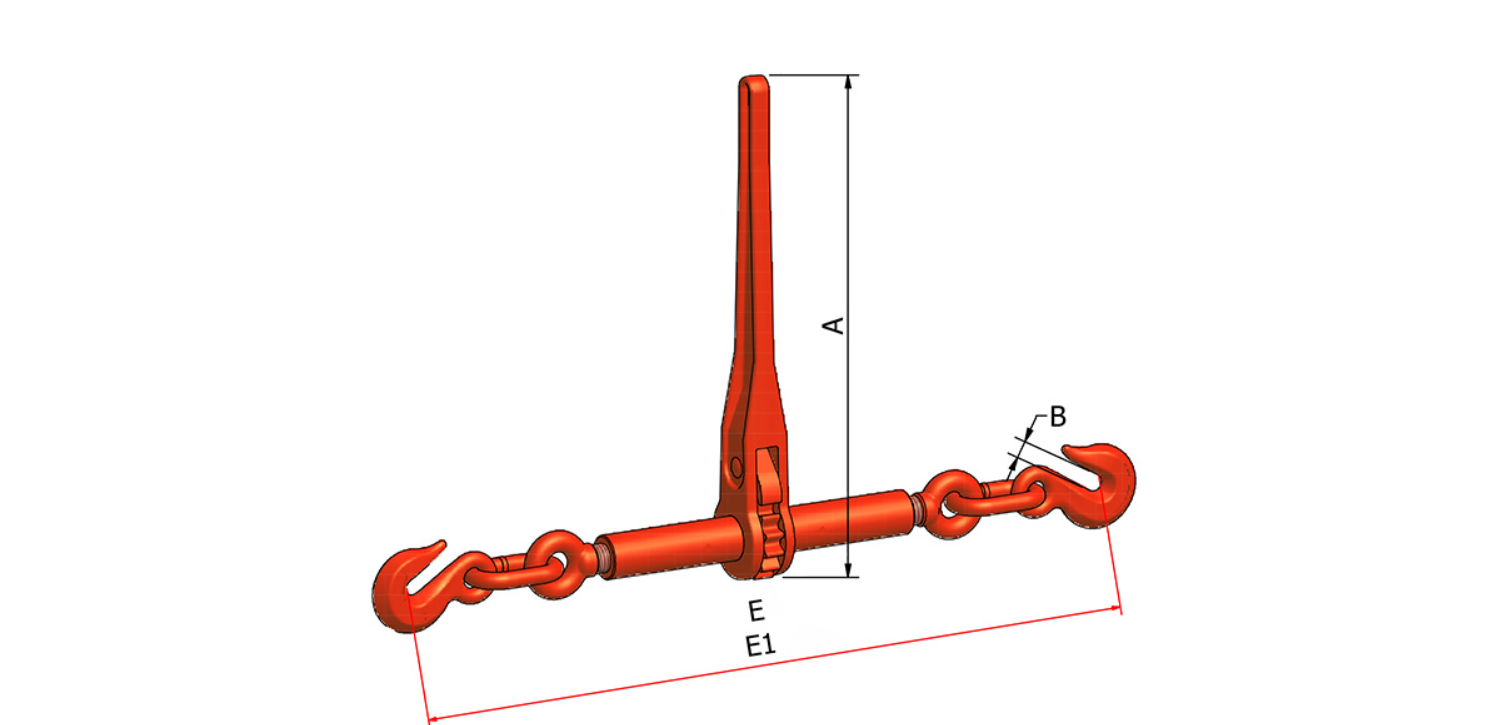

70G American Ratchet Binder

Specifications 70G American Ratchet Binder plays a fixed role in the transportation, movement, shipment or storage of goods. After locking with a tight rigging, the object will not fall off, it is safe, reliable, and lightweight, and the object is protected from damage. Easy to operate and more than ten times more efficient than other tensioning methods.
SPECIFICATION WORKING PULL(LBS) BREAKING FORCE(LBS) WEIGHT(LBS) PRODUCT SIZE
A B E E1
1/4-G7 3150 11000 3.71 8.89 0.39 16.34 20.27
5/16-G7 3/8-G4 5400 19000 10 15.24 0.5 22.64 28.94
5/16-G7 3/8-G7 6600 26400 10.9 15.24 0.5 23.42 29.72
3/8-G7 1/2-G4 9200 33000 11.7 15.24 0.65 23.45 29.92
1/2-G7 5/8-G4 13000 46000 15.5 15.24 0.73 27.16 33.07
5/8-3/4 20000 70000 21.23 15.24 0.93 30.31 38.11

The Ratchet Binder is mainly used for heavy cargo operation. The design strengthens the endurance of each component. It adopts alloy steel structure, which is strong and durable. The hook can be rotated 360 ° for easy operation.

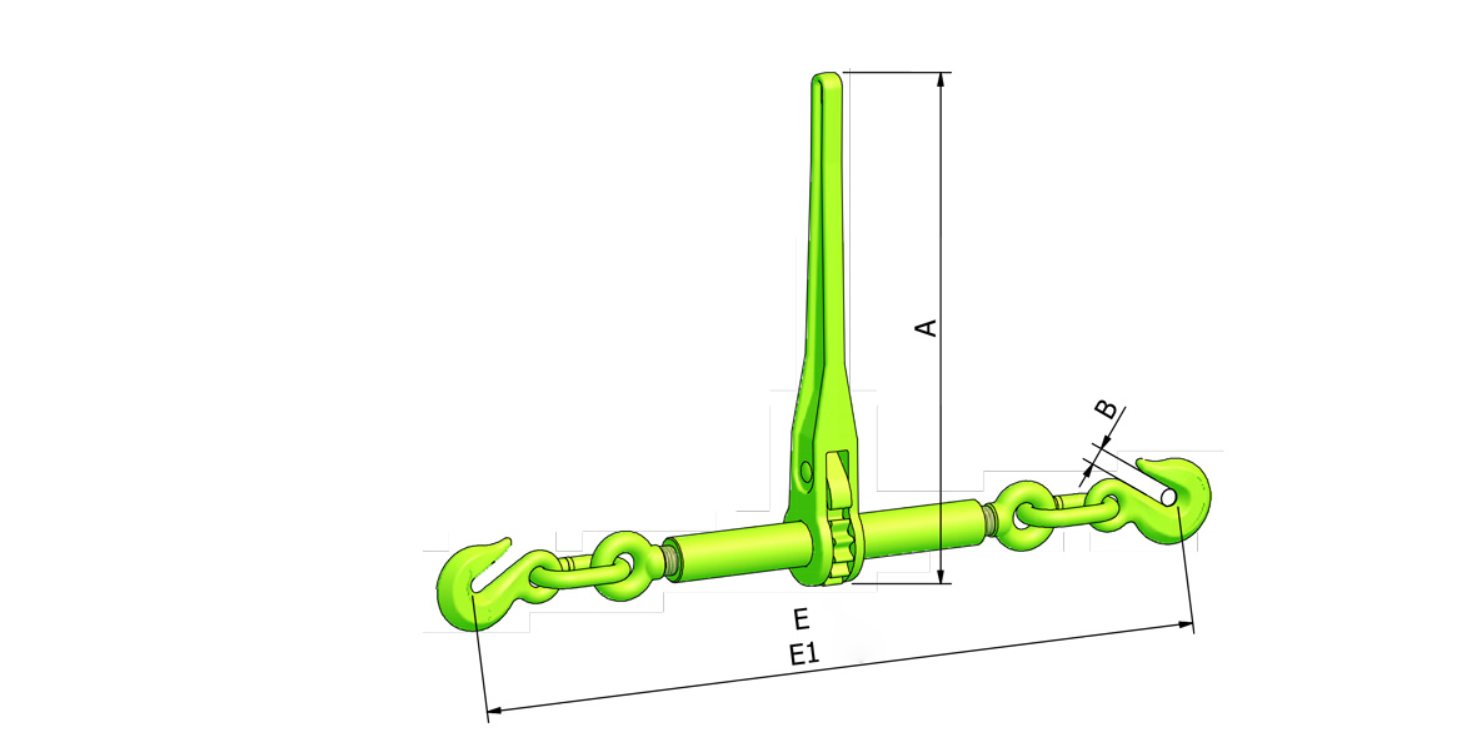

80G American Ratchet Binder

Specifications 80G American Ratchet Binder plays a fixed role in the transportation, movement, shipment or storage of goods. After locking with a tight rigging, the object will not fall off, it is safe, reliable, and lightweight, and the object is protected from damage. Easy to operate and more than ten times more efficient than other tensioning methods.
SPECIFICATION WORKING PULL(LBS) BREAKING FORCE(LBS) WEIGHT(LBS) PRODUCT SIZE
A B E E1
5/16-3/8 7100 21300 10.9 15.24 0.5 23.42 29.72
3/8-1/2 12000 36000 12.65 15.24 0.65 24.13 30.07
1/2-5/8 16000 48000 16.2 15.24 0.73 27.16 33.07

The Ratchet Binder is mainly used for heavy cargo operation. The design strengthens the endurance of each component. It adopts alloy steel structure, which is strong and durable. The hook can be rotated 360 ° for easy operation.

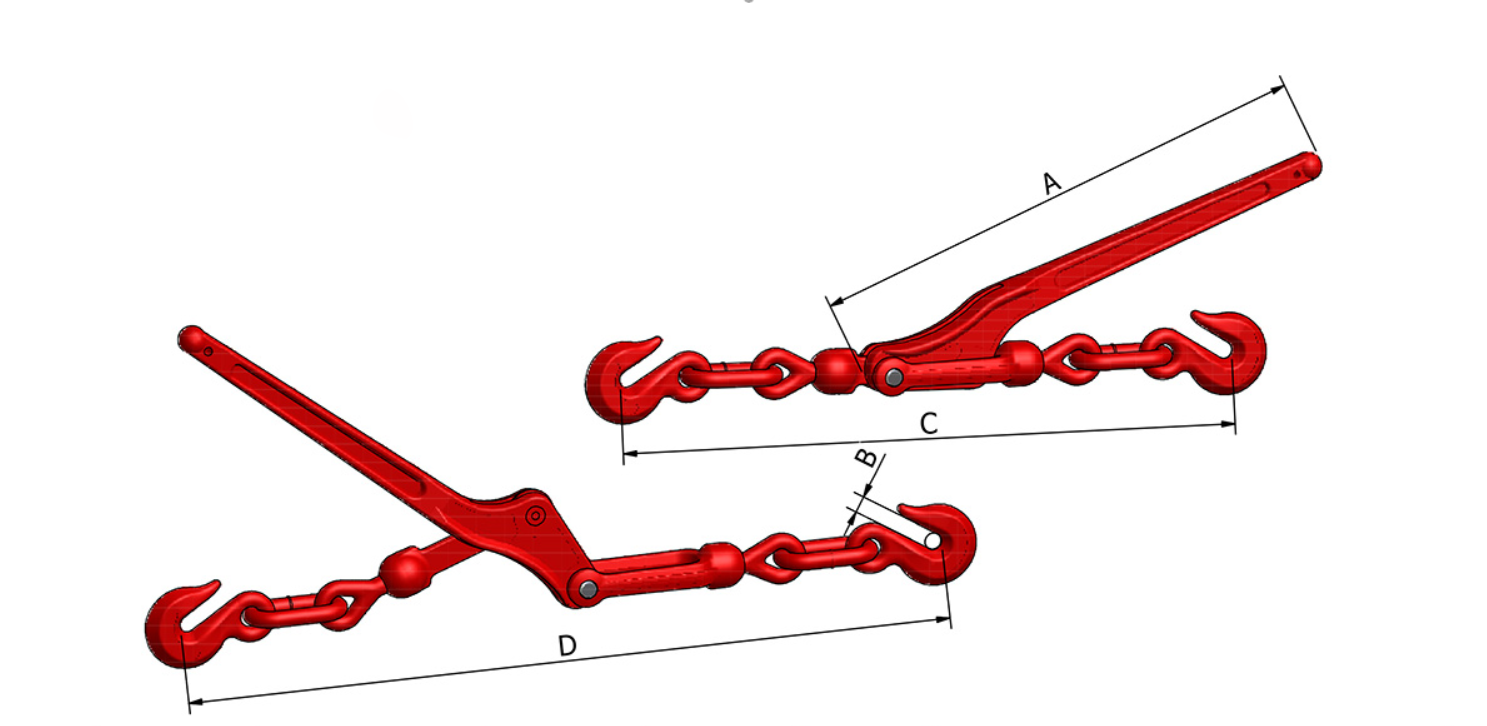

70G American Lever Binder

Specifications 70G American-style Lever Binder play a fixed role in the transportation, movement, shipment or storage of goods. After locking with a tight rigging, the object will not fall off, it is safe, reliable, and lightweight, and the object is protected from damage. Easy to operate and more than ten times more efficient than other tensioning methods.
SPECIFICATION WORKING PULL(LBS) BREAKING FORCE(LBS) WEIGHT(LBS) PRODUCT SIZE
A B E E1
1/4-G7 3150 11000 3.78 11.88 0.39 14.56 17.32
5/16-G7 3/8-G4 5400 19000 7.68 15.74 0.5 19.48 23.89
5/16-G7 3/8-G7 6600 26400 9.20 15.74 0.5 20.47 24.60
3/8-G7 1/2-G4 9200 33000 12.30 17.12 0.65 22.04 26.96
1/2-G7 5/8-G4 13000 46000 19 20.39 0.73 26.02 31.10

Lever-type Binder is a kind of automobile Binder in the state of instant tightening, which can fasten the items quickly, easy to use and convenient to carry.

CHAIN WITH DELTA RING AND GRAB HOOK EACH ON ONE END

Specifications CHAIN WITH DELTA RING AND GRAB HOOK EACH ON ONE END
A B1 C B2 D LENGTH WEIGHT B.L. PC/BAG
2" 5/16" 1/4X14 5/16" 5/16" 18" 0.90kg 10000LB 50
2" 3/8" 5/16X11 3/8" 3/8" 18" 1.19kg 10000LB 50
3" 7/16" 5/16X10 7/16" 5/16" 18" 1.32kg 16200LB 35
3" 7/16" 5/16X10 7/16" 3/8" 18" 1.48kg 16200LB 35
3" 7/16" 5/16X6 7/16" 3/8" 12" 1.28kg 16200LB 35
3" 7/16" 3/8X9 7/16" 3/8" 18" 1.70kg 16200LB 35
4" 7/16" 5/16X10 7/16" 3/8" 18" 1.68kg 20000LB 35

V312x215JT

Specifications

  • 5/16” Grade 70 V-Chain Bridle x 2’ legs
  • 3/4” Pear Link with (2) 5/16” Grade 70 Grab Hooks used for Adjusting. 2 legs of 5/16” Grade 70 chain x 2’ long with a 15” Eye J-Hook and a “T” Hook on each leg connected with a welded Link.
  • Entire Assembly is Yellow Zinc.
  • Working Load Limit 5,400 lbs. at 60 degrees

V312x215J

Specifications

  • 5/16” Grade 70 V-Chain Bridle x 2’ legs
  • 3/4” Pear Link with (2) 5/16” Grade 70 Grab Hooks used for Adjusting. 2 legs of 5/16” Grade 70 chain x 2’ long with a 15” Eye J-Hook on each leg connected with a welded Link.
  • Entire Assembly is Yellow Zinc
  • Working Load Limit 5,400 lbs. at 60 degrees

V312x315JMJ

Specifications

  • 5/16” Grade 70 V-Chain Bridle x 3’ legs
  • 3/4” Pear Link with (2) 5/16” Grade 70 Grab Hooks used for Adjusting. 2 legs of 5/16” Grade 70 chain x 3’ long with a 15” Eye J-Hook and Mini “J” Hook on each leg connected with a welded Link.
  • Entire Assembly is Yellow Zinc.
  • Working Load Limit 5,400 lbs. at 60 degrees

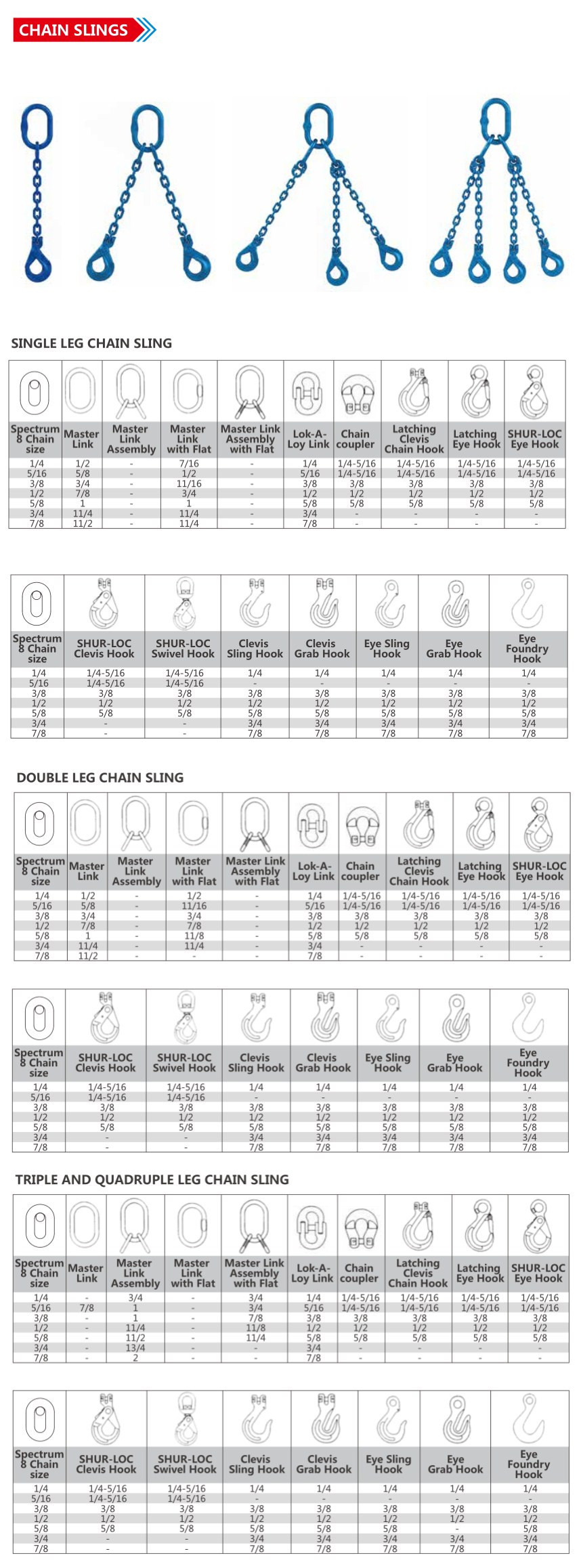

Chain Sling

Specifications

Chain Sling

Specifications

Chain Sling

Specifications

Chain Sling

Specifications
